Steps, hole-to-edge and centre distance
A caliper cannot touch a hole centre, so centre distances are calculated: across the far edges of two holes C = L(outer) − (d1 + d2)/2; across the near edges C = L(inner) + (d1 + d2)/2. Measure both diameters first.
On this page
Step height
Rest the beam end on the upper face and run the depth rod down to the lower face, or use the step faces at the back of the slider and the beam end (on calipers that have them). Keep the caliper square to the face.
Centre distance of two holes
| Method | What you measure | Formula |
|---|---|---|
| Far edges | Inside jaws in both holes, spread to the outer edges: L(outer) | C = L(outer) − (d1 + d2)/2 |
| Near edges | Outside-jaw tips in both holes, closed on the web: L(inner) | C = L(inner) + (d1 + d2)/2 |
Example: d1 = d2 = 10.02 mm, L(outer) = 60.06 mm → C = 60.06 − 10.02 = 50.04 mm. Use the method whose contact is most stable; the knife-edge tips are less accurate than the flat faces.
Hole to edge
Measure from the part edge to the near side of the hole (depth rod or outside jaws) and add half the hole diameter: distance to centre = a + d/2.
In KELIBRON

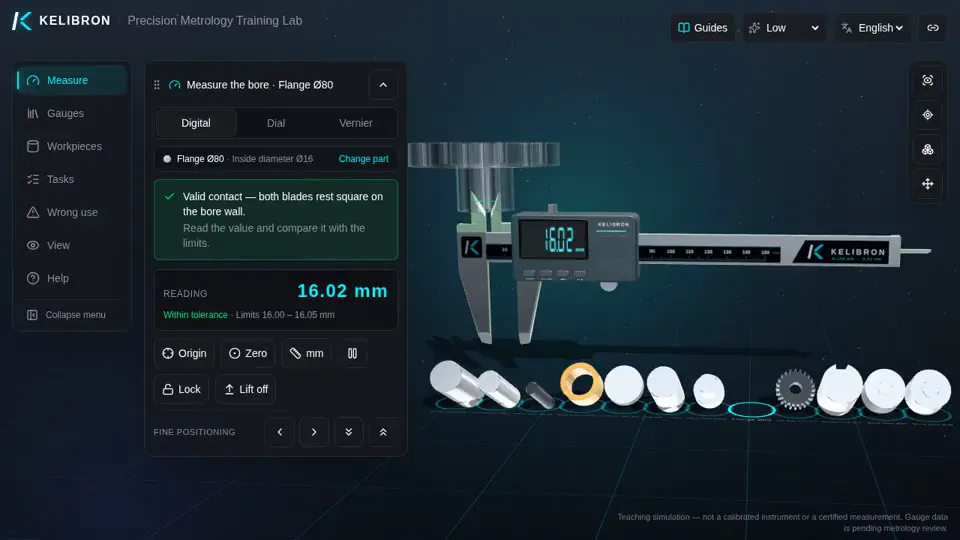

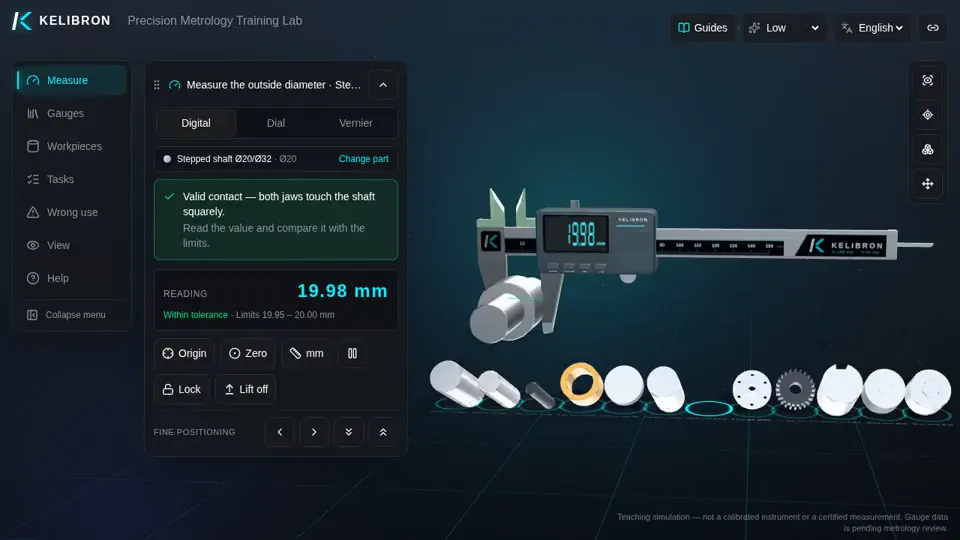

The lab currently trains outside diameter, bore and depth tasks; the same contact rules — square, light force, the right jaw faces — apply to steps and centre distances.
