How to read an inch vernier caliper

Why does a 25-line vernier read 0.001 in?

Because each vernier space is 0.001 in shorter than a main-scale space, or than two of them. The beam is graduated in 0.025 in (40 marks to the inch, a figure every 0.100 in). On the caliper in KELIBRON, 25 vernier spaces cover 24 main-scale spaces, 0.600 in: one vernier space is 0.600 ÷ 25 = 0.024 in, and 0.025 − 0.024 = 0.001 in.

Other calipers spread the vernier wider. India’s fitter course material (NIMI) shows 25 vernier spaces over 49 main-scale spaces, 49 × 0.025 = 1.225 in: one vernier space is 0.049 in, compared with two main-scale spaces of 0.050 in, so the least count is again 0.001 in. It also shows a 50-line vernier over 49 spaces of 0.050 in. The lines sit further apart on these long verniers, but the reading is taken the same way.

How do you read it, step by step?

Read the beam just to the left of the vernier zero, then add the vernier.

1. Whole inches: the last large inch figure before the vernier zero.
2. Tenths: each numbered mark past that inch adds 0.100 in.
3. Small marks: each mark past the last numbered one adds 0.025 in (there are at most three: 0.025, 0.050, 0.075).
4. Vernier: find the one vernier line that lines up with a beam line; its number × 0.001 in. Lines run 0 to 25, so this adds 0.000 to 0.024 in.
5. Add the four parts. Do not estimate between lines.

• NIMI’s example: the vernier zero is past 1 in, two numbered marks and one small mark, line 13 coincides: 1.000 + 0.200 + 0.025 + 0.013 = 1.238 in.
• Past 1 in, two numbered marks and three small marks (51 small marks in all, 1.275 in), line 12 coincides: 1.275 + 0.012 = 1.287 in.
• When the vernier zero itself sits on a beam line, the vernier adds nothing: 1.300 in reads as 1.300 + line 0.

Which slips give the wrong reading?

These three slips give a wrong reading even when the right vernier line has been found.

A quick check: the beam part of a reading always ends in 000, 025, 050 or 075, and the vernier adds less than 0.025 in.

How do you read a 1/128 in fractional vernier?

Read the beam in sixteenths of an inch, add the coinciding vernier line × 1/128 in, then reduce the fraction. On the metric vernier caliper in KELIBRON, the upper scale is in 1/16 in and its vernier has 8 spaces over 15/16 in. One vernier space is 15/128 in, which is 1/128 in shorter than two beam spaces (16/128 in), so the scale reads to 1/128 in.

1. Read the last 1/16 in mark before the vernier zero, as a fraction of an inch.
2. Add the number of the coinciding vernier line (0 to 7) × 1/128 in.
3. Put both over 128 and reduce.

Example: the vernier zero is just past 1 in and line 6 coincides: 1 + 6/128 = 1 3/64 in, which is 1.046875 in. A rod of 1 3/8 in reads 1 6/16 on the beam with line 0, and 6/16 reduces to 3/8.

What is 0.001 in in millimetres?

One inch is exactly 25.4 mm, so 0.001 in = 0.0254 mm and 1/128 in = 0.1984375 mm (about 0.2 mm).

That makes a 0.001 in vernier a little coarser than a 0.02 mm metric vernier, and a 1/128 in vernier about ten times coarser than the 0.02 mm one (about eight times coarser than the 0.001 in one). Convert a whole reading by multiplying by 25.4: 1.238 in × 25.4 = 31.4452 mm. A full conversion table is on the inch to mm chart.

What if the reading sits on a tolerance limit?

Then a 0.001 in caliper cannot tell you whether the part passes, and you need an instrument with a finer resolution. KELIBRON’s practice pin shows this: it is drawn Ø0.500 ±0.001 in, so its upper limit is 0.501 in, and it was made 0.5013 in.

The inch vernier caliper reads it as 0.501 in, right on the limit. The lab bases its verdict on the measured value before it is rounded to the scale, so it reports the pin as over size. The lab’s 0–1 in vernier micrometer (OM-1INV), which resolves 0.0001 in, reads the same pin as 0.5013 in and rejects it, so the finer instrument settles what the caliper could not. How a reading close to a limit should be judged in your own work depends on the decision rule you follow; see measurement uncertainty and choosing an instrument for the tolerance.

Which standard covers inch calipers?

In the United States it is ASME B89.1.14, Calipers (2018 edition, reaffirmed 2023). ASME describes its scope as the specification, verification and calibration of vernier, dial, electronic digital and specialty calipers, and it is meant to complement, not contradict, ISO 13385-1, the international standard for the design and metrological characteristics of calipers.

The vernier step is the resolution; it says nothing about accuracy. Take the permitted error from the standard or from your caliper’s calibration certificate.

Practising in KELIBRON

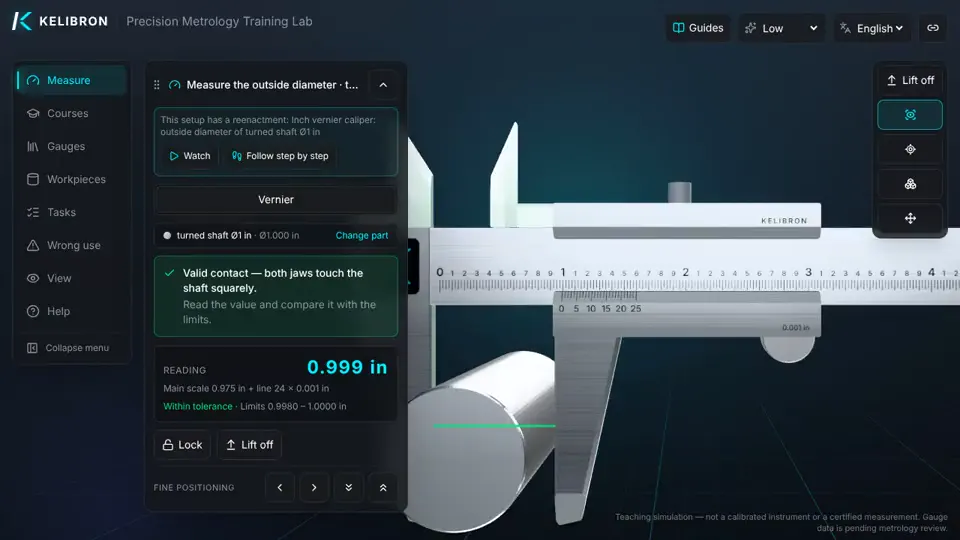

The lab has an inch vernier caliper (VC-6IN): 0–6 in, beam in 0.025 in, a 25-line vernier over 0.600 in, reading 0.001 in. It reads in inches only; the unit cannot be switched to millimetres. Four practice parts are drawn in inches: a Ø1.000 0/−0.002 in shaft (made 0.9985 in, exactly between two lines, which the caliper shows as 0.999 in; it passes), the Ø0.500 ±0.001 in pin above, a bushing with a 0.750 +0.002/0 in bore, and a Ø1 3/8 ±1/64 in rod for the fractional scale. The metric vernier caliper shows its 1/128 in reading in the readout panel as a fraction and a decimal, for example 1 3/64 in (1.0469 in).

The lab also has an inch dial caliper (DL-6IN, 0.001 in) and two 0–1 in micrometers (0.001 in and 0.0001 in). The inch instruments and their parts are draft data until metrology review.
