Caliper measurement errors and how to avoid them
Most wrong caliper readings come from the setup, not the instrument: an unchecked zero, a tilted caliper, dirt, too much force, parallax or measuring far from the beam.
On this page
Sources of error
| Error | Cause | Avoid it |
|---|---|---|
| Parallax | Reading the scale at an angle | Look square onto the scale |
| Abbe error | The part sits away from the scale line, so any jaw tilt is magnified | Measure deep in the jaws, close to the beam |
| Cosine / tilt error | Caliper not square to the part: reads L / cos α | Keep square; rock for the minimum (outside) reading |
| Zero error | Jaws do not read 0 when closed | Check and set the zero before measuring |
| Measuring force | Squeezing springs the jaws | Light, even force; use the thumb roller |
| Dirt, burrs | Something between face and part | Clean faces and part; deburr |
| Temperature | Steel grows about 11.5 µm per metre per °C | Measure at about 20 °C; let parts cool |
| Worn jaws | Faces no longer parallel | Calibrate regularly; check against gauge blocks |
Errors specific to bores and depths
For a bore, blades off the diameter span a chord and read small; tilted along the bore they read large (D / cos α). For a depth, a beam end that is not resting on the reference face reads large by the gap; a tilted caliper reads h / cos α; a chip on the bottom reads small. KELIBRON demonstrates each of these with a guided correction.
References
- ISO 1:2022 — Geometrical product specifications (GPS) — Standard reference temperature for the specification of geometrical and dimensional properties · ISO
- T. Doiron, “20 °C — A Short History of the Standard Reference Temperature for Industrial Dimensional Measurements”, J. Res. NIST 112(1), 2007 · NIST
- JCGM 200:2012 — International vocabulary of metrology — Basic and general concepts and associated terms (VIM, 3rd edition) · JCGM / BIPM
- ISO 13385-1:2019 — Geometrical product specifications (GPS) — Dimensional measuring equipment — Part 1: Design and metrological characteristics of callipers · ISO
Watch it done
Watch in the lab → Follow step by step →
Played back in the lab from domain commands; the reading and verdict come from the measurement model.
Practise in the lab
Digital caliper · wrong useWrong use: caliper tilted on a shaftOpen in the lab →
Digital caliper · wrong useWrong use: chip on a jaw faceOpen in the lab →
Digital caliper · wrong useWrong use: squeezing too hardOpen in the lab →

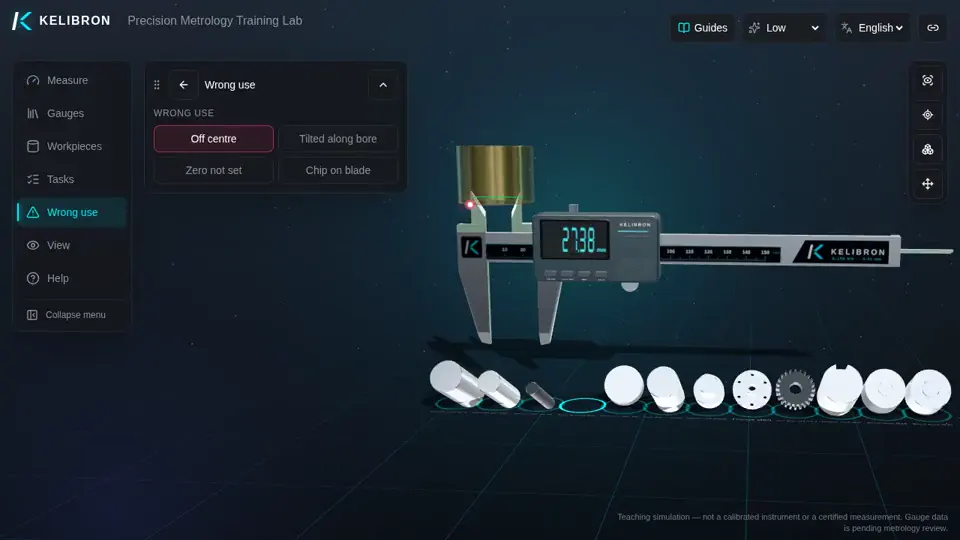

Digital caliper · wrong useWrong use: blades off the bore centreOpen in the lab →

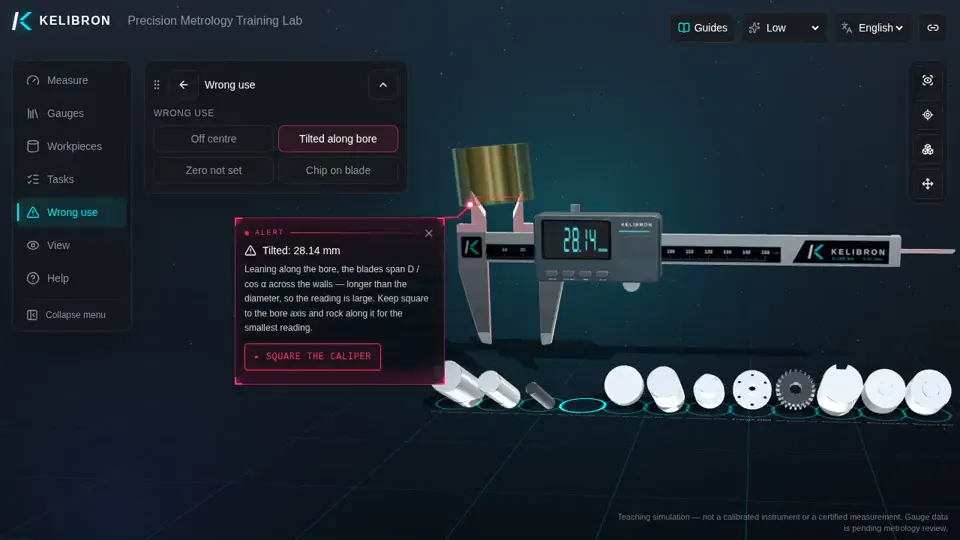

Digital caliper · wrong useWrong use: caliper tilted in a boreOpen in the lab →

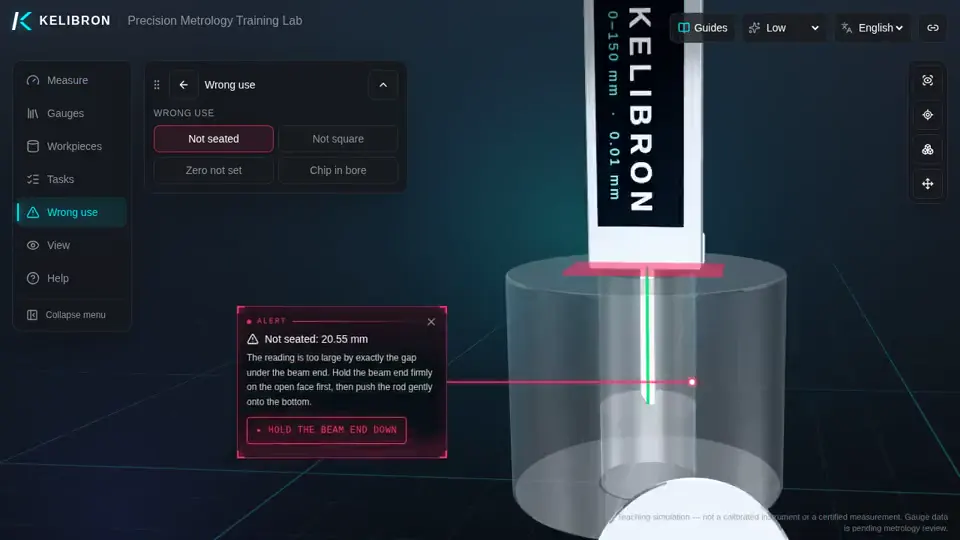

Digital caliper · wrong useWrong use: beam end not seated for depthOpen in the lab →

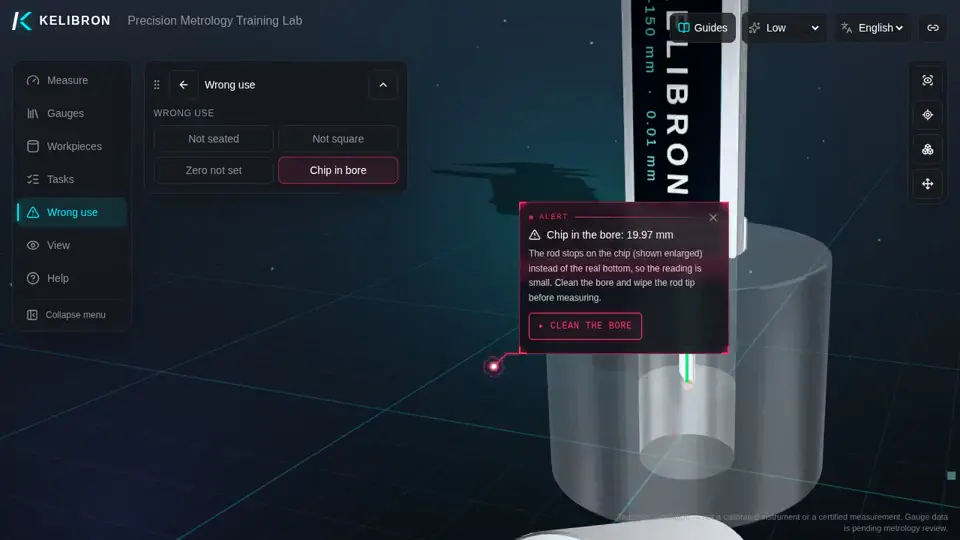

Digital caliper · wrong useWrong use: chips at the bottom of a blind boreOpen in the lab →
Questions
What is Abbe error in a caliper?
The measured length lies off the scale axis (the jaws are offset from the beam), so a small jaw tilt turns into a length error. Measure close to the beam to keep it small.
Why does temperature matter?
Length standards refer to 20 °C. A 100 mm steel part warmed by 5 °C is about 6 µm longer.
